RCYD(C)永磁自卸除鐵器
產品概述

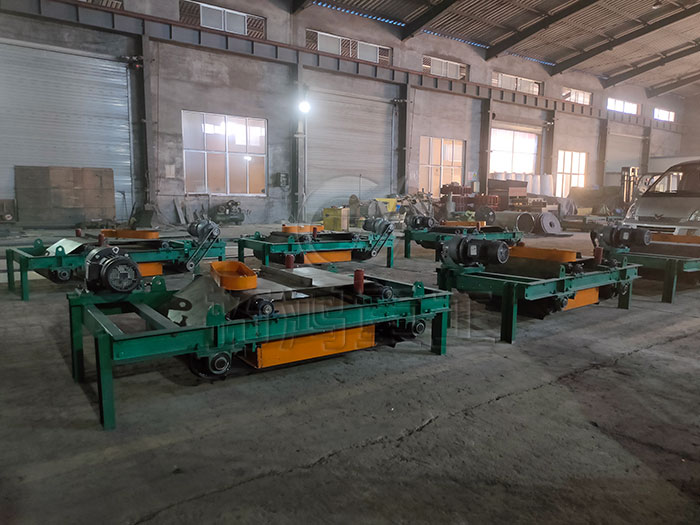

RCYD(C)系列永磁自卸除鐵器是由高性能永磁磁芯、棄鐵皮帶、減速電機、框架、滾筒等部分組成，與各種輸送機配套使用。用于從非磁性物料中自動清除0.1—35公斤重的鐵磁性物質。其內部磁路采用計算機模擬設計、完善的雙磁極結構，保障整機在惡劣環境中無故障長期運行。

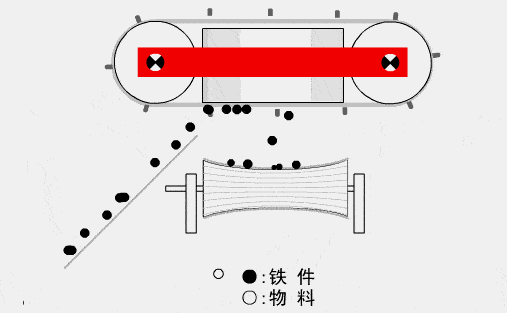

工作原理：
技術參數
| 型號 | 適應帶寬 mm | 額定吊高 h=mm | 物料厚度 ≤mm | 磁場強度 ≥mT | 驅動功率 ≤kw | 適應帶速 ≤m/s | 工作制 | 重量 kg | 外形尺寸mm | ||||
| A | B | C | D | E | |||||||||
| RCYD(C)-5 | 500 | 150 | 100 | 60 | 1.5 | 4.5 | 連續 | 750 | 1900 | 735 | 935 | 950 | 753 |
| RCYD(C)-6 | 600 | 180 | 130 | 60 | 1.5 | 920 | 2050 | 780 | 1030 | 1100 | 753 | ||
| RCYD(C)-6.5 | 650 | 200 | 150 | 70 | 1.5 | 1200 | 2165 | 780 | 1080 | 1200 | 888 | ||
| RCYD(C)-8 | 800 | 250 | 200 | 70 | 2.2 | 1400 | 2350 | 796 | 1280 | 1300 | 1088 | ||
| RCYD(C)-10 | 1000 | 300 | 250 | 70 | 3.0 | 2120 | 2660 | 920 | 1550 | 1400 | 1335 | ||
| RCYD(C)-12 | 1200 | 350 | 300 | 70 | 4.0 | 3350 | 2860 | 1010 | 1720 | 1550 | 1515 | ||
| RCYD(C)-14 | 1400 | 400 | 350 | 70 | 4.0 | 4450 | 3225 | 1050 | 1980 | 1800 | 1755 | ||
| RCYD(C)-16 | 1600 | 450 | 400 | 70 | 5.5 | 6200 | 3350 | 1180 | 2160 | 1950 | 1850 | ||
| RCYD(C)-18 | 1800 | 500 | 450 | 80 | 5.5 | 8100 | 3580 | 1210 | 2450 | 2200 | 2130 | ||
| RCYD(C)-20 | 2000 | 550 | 500 | 80 | 7.5 | 9700 | 3800 | 1300 | 2700 | 2400 | 2410 | ||
RCYD(C)-T超強永磁自缷式除鐵器主要技術參數：
| 型號 |
適用帶寬 mm |
額定吊高 h mm |
磁場強度 ≈mT |
驅動電機功率 Kw |
外型尺寸 mm |
懸掛尺寸 mm |
適用帶速 ≤m/s |
整機重量 Kg |
|||
| L | W | H | |||||||||
| RCYD(C)-6.5 | T1 | 650 | 200 | 90 | 2.2 | 2160 | 1075 | 795 | 1200×890 | 4.5 | 1300 |
| T2 | 120 | 2.2 | 2160 | 1075 | 795 | 1200×890 | 1420 | ||||
| T3 | 150 | 2.2 | 2310 | 1075 | 795 | 1200×890 | 1750 | ||||
| RCYD(C)-8 | T1 | 800 | 250 | 90 | 2.2 | 2350 | 1280 | 795 | 1300×1090 | 4.5 | 1920 |
| T2 | 120 | 2.2 | 2350 | 1280 | 795 | 1300×1090 | 2180 | ||||
| T3 | 150 | 3.0 | 2520 | 1253 | 795 | 1300×1090 | 2820 | ||||
| RCYD(C)-10 | T1 | 1000 | 300 | 90 | 3.0 | 2660 | 1540 | 950 | 1400×1335 | 4.5 | 2350 |
| T2 | 120 | 3.0 | 2660 | 1540 | 950 | 1400×1335 | 2700 | ||||
| T3 | 150 | 4.0 | 2760 | 1540 | 950 | 1400×1335 | 3680 | ||||
| RCYD(C)-12 | T1 | 1200 | 350 | 90 | 4.0 | 2900 | 1730 | 970 | 1600×1515 | 4.5 | 3250 |
| T2 | 120 | 4.0 | 2900 | 1730 | 970 | 1600×1515 | 4100 | ||||
| T3 | 150 | 5.5 | 2900 | 1730 | 970 | 1600×1515 | 5150 | ||||
| RCYD(C)-14 | T1 | 1400 | 400 | 90 | 4.0 | 2900 | 1730 | 970 | 1900×1750 | 4.5 | 4800 |
| T2 | 120 | 5.5 | 3225 | 1980 | 1180 | 1900×1750 | 5600 | ||||
| T3 | 150 | 5.5 | 3340 | 1980 | 1180 | 1900×1750 | 7450 | ||||
| RCYD(C)-16 | T1 | 1600 | 450 | 90 | 5.5 | 3450 | 2210 | 1180 | 2000×1940 | 4.5 | 6200 |
| T2 | 120 | 5.5 | 3450 | 2210 | 1180 | 2000×1940 | 7750 | ||||
| T3 | 150 | 7.5 | 3620 | 2210 | 1180 | 2000×1940 | 1038 | ||||
| RCYD(C)-18 | T1 | 1800 | 500 | 90 | 7.5 | 3825 | 2570 | 1180 | 2200×2180 | 4.5 | 8500 |
| T2 | 120 | 7.5 | 3825 | 2570 | 1180 | 2200×2180 | 10850 | ||||
| T3 | 150 | 11.0 | 4025 | 2570 | 1270 | 2200×2180 | 14800 | ||||
| RCYD(C)-20 | T1 | 2000 | 550 | 90 | 7.5 | 4275 | 2570 | 1180 | 2400×2450 | 4.5 | 11500 |
| T2 | 120 | 11.0 | 4275 | 2570 | 1250 | 2400×2450 | 14270 | ||||
| T3 | 150 | 11.0 | 4540 | 2670 | 1250 | 2400×2450 | 19260 | ||||
| RCYD(C)-22 | T1 | 2200 | 600 | 90 | 11.0 | 4810 | 2820 | 1250 | 2700×2670 | 4.5 | 13980 |
| T2 | 120 | 11.0 | 4810 | 2820 | 1250 | 2700×2670 | 18350 | ||||
| T3 | 150 | 15.0 | 4810 | 2820 | 1350 | 2700×2670 | 25080 | ||||
| RCYD(C)-24 | T1 | 2400 | 650 | 90 | 15.0 | 5280 | 3180 | 1250 | 3200×2850 | 4.5 | 18760 |
| T2 | 120 | 15.0 | 5280 | 3180 | 1350 | 3200×2850 | 23870 | ||||
| T3 | 150 | 15.0 | 5280 | 3180 | 1350 | 3200×2850 | 29960 | ||||
